Fabrication of a Steel Carriage Base for the Steel & Mining Industry

Steel Carriage Base

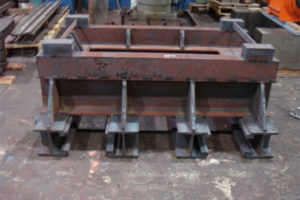

A customer in the steel and mining industry took advantage of our recognized manufacturing services, hiring us at American Precision Services to complete the custom fabrication of the carriage base highlighted here. Utilizing steel in beam, bar, and plate form, our advanced horizontal boring mill equipment was employed for manufacturing. Certified welding and precision milling processes including drilling, boring, and tapping were carried out to create the base as specified in the customer supplied 2D CAD drawings. The parts were stress relieved to combat instability and distortion, assembled as required, and painted with primer. The tightest tolerance met was ± 1/64”, with finished overall dimensions being 5′-8½” in length by 4′-¾” in width.

Quality and accuracy were ensured with thorough dimensional and visual inspections. Turnaround time for this project was 60 days, shipping the base to the customer in Chicago, IL. For more information about this custom carriage base fabrication, or our other experienced fabrication and precision machining capabilities please see the table below or contact us directly.

Request A Quote

Fabrication of a Steel Carriage Base for the Steel & Mining Industry Project Highlights:

Product Description

Carriage Frame

Capabilities Applied/Processes

Primary:
Welding
Milling – Drilling, Boring, Tapping

Secondary:
Stress Relieving
Assembly
Painting

Equipment Used to Manufacture Part

Welding, Fabricating, and Horizontal Boring Mill

Overall Part Dimensions

Length: 5’-8½”
Width: 4’-3¼”

Tightest Tolerances

Fractional Dimensions: ± 1/64

Material Used

Steel – Beam, Bar, Plate

Material Finish

Painted with Primer

In process testing/inspection performed

Visual Inspection, Dimensional Inspection

Industry for Use

Steel & Mining

Volume

1

Delivery/Turnaround Time

60 Days

Delivery Location

Chicago, IL

Standards Met

Customer Specifications, 2D CAD Drawing

Product Name

Carriage Base
